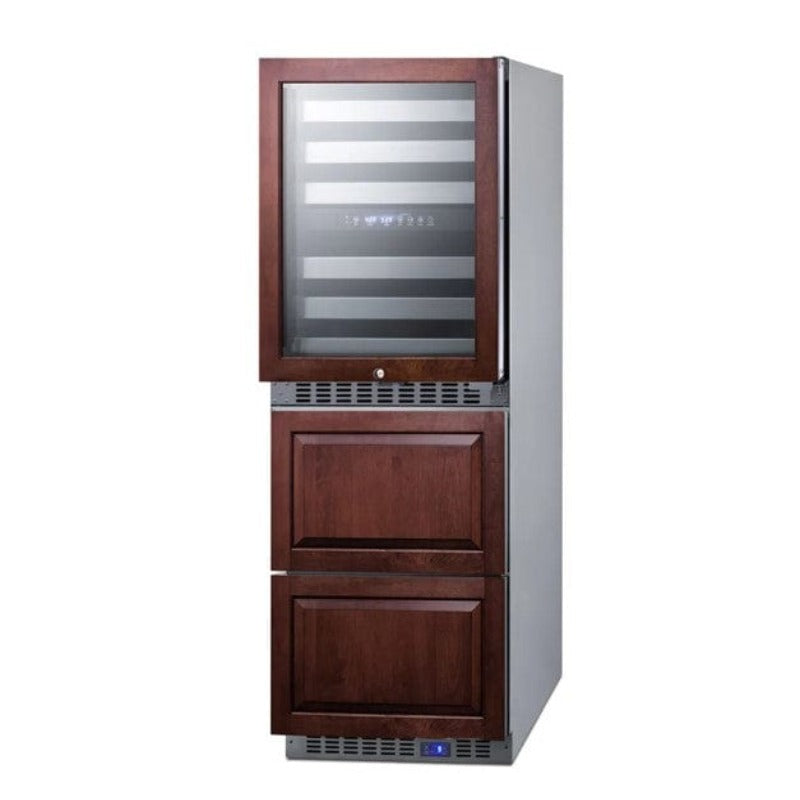

Introducing the Summit 24" Wide Combination Dual-Zone Wine Cellar and 2-Drawer All-Freezer, SWCDAF24PNR, a stylish and versatile refrigeration solution that brings luxury, functionality, and design customization together in one seamless package.
Perfect for upscale kitchens and home bars, this combination unit features a 46-bottle dual-zone wine cellar on top and a 3.4 cu. ft. two-drawer freezer below. The panel-ready doors are designed to accept custom overlay panels and handles (not included), allowing the unit to blend effortlessly with your existing cabinetry.
The front-breathing stainless steel cabinet allows for built-in or freestanding installation. The wine cellar’s reversible glass door is double-pane tempered for energy efficiency and showcases your collection under elegant blue LED lighting. A factory-installed lock adds security, while the digital control panel allows independent temperature adjustment for both wine zones:
Upper Zone: 41°F – 50°F
Lower Zone: 50°F – 64°F
Inside, six stainless steel-trimmed glide-out wire shelves offer smooth access and a premium presentation.
The lower section features a stainless steel interior and exterior freezer with two smooth-sliding drawers. Features include fan-forced frost-free cooling, a digital thermostat, adjustable dividers, and a removable chrome basket for flexible organization. Added safety comes from child locks, temperature and open drawer alarms, and Sabbath mode for observant households.
A 6-ft Y-cord with a single 3-prong right-angle plug powers both sections from a single outlet, simplifying your setup.
Note: This item is non-returnable.
✔ Capacity: 46 wine bottles + 3.4 cu. ft. freezer storage
✔ Zones: Dual-zone wine cellar + 2-drawer freezer
✔ Cooling System: Frost-free, interior and exterior fan cooling
✔ Temperature Range:
• Wine Upper Zone: 41°F – 50°F
• Wine Lower Zone: 50°F – 64°F
• Freezer: Standard freezer ranges
✔ Door: Panel-ready glass door (panel size: 27 5/8" H x 23" W x 3/4" thick), right-hinged, reversible
✔ Cabinet: Stainless steel
✔ Installation: Built-in or freestanding use
✔ Shelves: 6 stainless steel-trimmed wire shelves (wine)
✔ Freezer Features: 2 drawers, chrome basket, adjustable dividers
✔ Controls: Separate digital thermostats for wine and freezer sections
✔ Lighting: Blue LED (wine zone)
✔ Cord: 6-ft Y-cord with single 3-prong right-angle plug
✔ Sabbath Mode: Yes
✔ Lock: Factory-installed lock on wine cellar door
✔ Warranty: 1-year parts & labor, 5-year compressor (parts only)
• Dimensions: 65.63" H x 23.63" W x 23.75" D
• Depth with handle: 25.75"
• Depth with door at 90°: 45.75"
• Weight: 229 lbs
With premium storage for wine and frozen goods in one panel-ready appliance, this Summit combination unit offers the ultimate in functionality and sleek, integrated design.
Summit 24" Wide Combination Dual-Zone Wine Cellar and 2-Drawer Freezer User Guide
