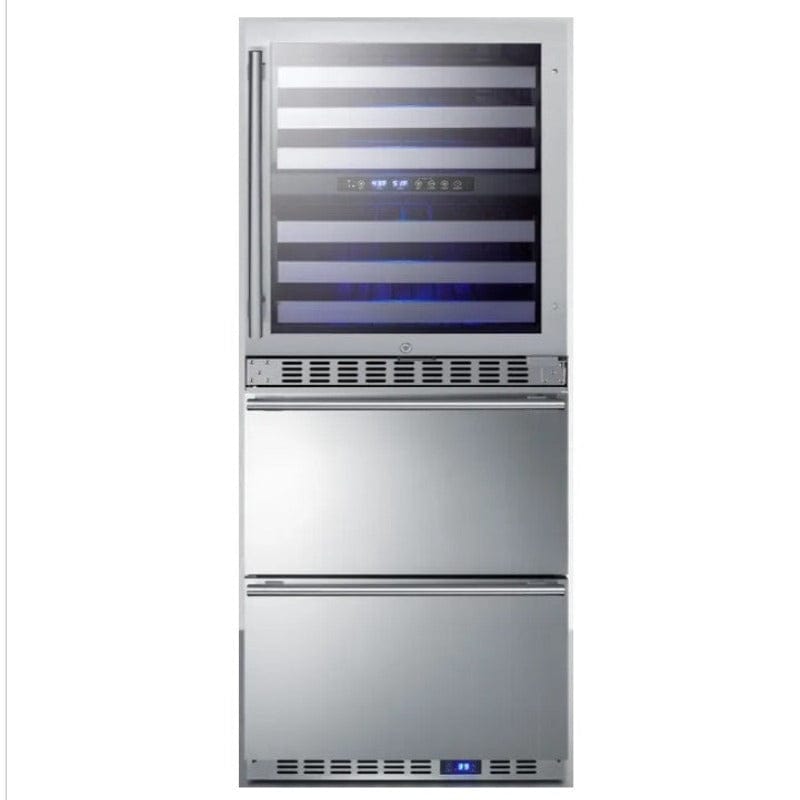

Summit 24" Wide, Combination Dual-Zone Wine Cellar and 2-Drawer Refrigerator-Freezer, Built-In or Freestanding, Right Hinge, 46 Bottle Capacity + 3.9 cu. ft. Fridge-Freezer Storage
High-performance wine and food storage in a sleek stainless steel design
The Summit SWCDRF24 merges elegant design with versatile functionality. This unit combines a 46-bottle dual-zone wine cellar with a 3.9 cu. ft. refrigerator-freezer, offering a complete solution for sophisticated storage in kitchens, bars, or entertainment spaces.
Its front-breathing stainless steel cabinet allows for built-in or freestanding installation, while professional brushed stainless steel handles elevate its premium look. The double-pane tempered glass wine door is factory-reversible and includes a factory-installed lock for added security.
Inside the wine cellar, six stainless steel-trimmed adjustable wire shelves glide smoothly for easy access, illuminated by subtle blue LED lighting. The digital control panel provides separate temperature zones:
-
Upper Zone: 41°F – 50°F
-
Lower Zone: 50°F – 64°F
Below, the dual-drawer refrigerator-freezer features stainless steel interiors and exteriors, with frost-free fan-forced cooling for consistent performance. A digital thermostat offers precise temperature management. Additional features include adjustable dividers, a chrome basket, child locks, and alarm systems to enhance safety and organization.
Powering both sections is simple with the included 6-ft Y-cord with a single 3-prong right-angle plug.
Note: This item is non-returnable.
Key Features:
✔ Capacity: 46 wine bottles + 3.9 cu. ft. refrigerator-freezer drawers
✔ Zones: Dual-zone wine cellar + refrigerator-freezer drawer combo
✔ Cooling System: Automatic defrost with interior and exterior fan cooling
✔ Temperature Range:
• Wine Upper Zone: 41°F – 50°F
• Wine Lower Zone: 50°F – 64°F
• Refrigerator/Freezer: Standard ranges
✔ Door: Glass with stainless steel trim, right-hand hinge, reversible
✔ Cabinet: Stainless steel
✔ Installation: Built-in or freestanding
✔ Shelves: 6 adjustable wire shelves with stainless steel front trim
✔ Drawers: 2 refrigerator-freezer drawers with adjustable dividers and chrome basket
✔ Control: Digital thermostat for both sections
✔ Lighting: Blue LED (wine cellar)
✔ Lock: Factory-installed on wine cellar door
✔ Cord: 6-ft Y-cord with a single 3-prong right-angle plug
✔ Sabbath Mode: Yes (fridge and freezer sections)
✔ Warranty: 1-year parts & labor, 5-year compressor (parts only)
Specifications:
• Dimensions: 65.63" H x 23.63" W x 23.75" D
• Depth with handle: 25.75"
• Depth with door at 90°: 45.75"
• Weight: 221 lbs
The SWCDRF24 is the ideal fusion of premium design and reliable performance, providing exceptional storage and style in one compact footprint.
