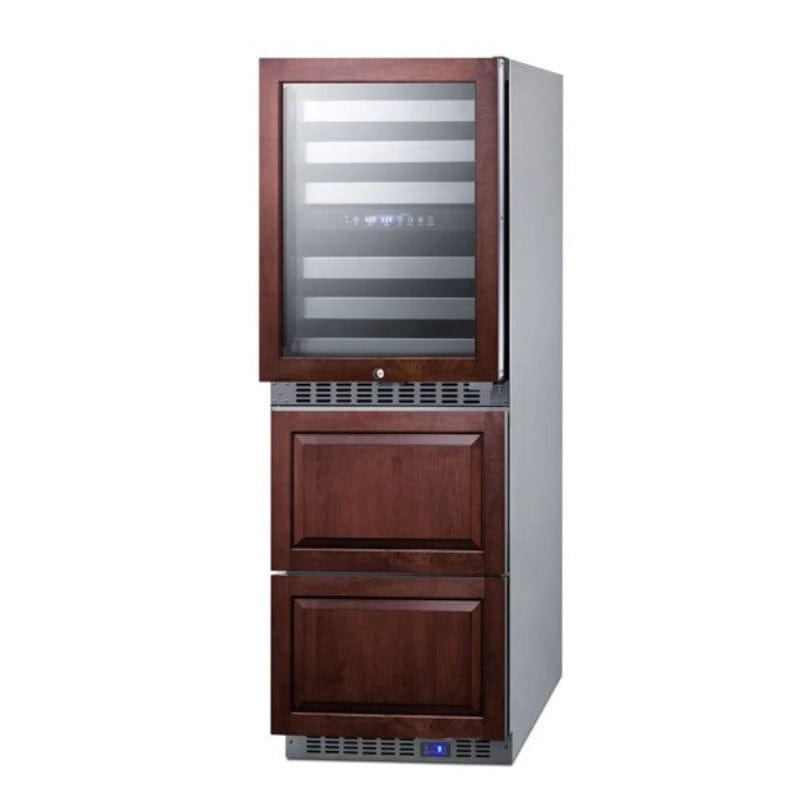

Summit 24" Wide, Combination Dual-Zone Wine Cellar and 2-Drawer Refrigerator-Freezer, Panel-Ready, Built-In or Freestanding, Right Hinge, 46 Bottle Capacity + 3.9 cu. ft. Fridge-Freezer Storage
Customizable luxury wine and food storage for modern kitchens and bars
he Summit SWCDRF24PNR is the perfect fusion of high-end refrigeration and design flexibility. Combining a 46-bottle dual-zone wine cellar with a spacious 3.9 cu. ft. refrigerator-freezer, this all-in-one unit brings both elegance and function to any space.
This model features panel-ready doors on both compartments, allowing seamless integration into your kitchen cabinetry. Users provide their own panels and handles for a fully personalized finish. Its front-breathing stainless steel cabinet supports built-in or freestanding installation, with a sleek footprint just under 24 inches wide.
The upper wine cellar section is designed with a double-pane tempered glass door and a factory-installed lock for security. Inside, six stainless steel-trimmed wire shelves glide out smoothly for easy access. Blue LED lighting enhances the visual appeal, while digital controls allow for independent zone management:
-
Upper Wine Zone: 41°F – 50°F
-
Lower Wine Zone: 50°F – 64°F
Below, the refrigerator-freezer drawers are finished in stainless steel inside and out, with fan-forced cooling for even temperature distribution. Features include frost-free operation, digital thermostats, adjustable dividers, a chrome basket, and child locks. Alarms for temperature deviations and open drawers, plus Sabbath mode, add peace of mind.
A 6-ft Y-cord with a single 3-prong right-angle plug powers both compartments from one outlet, simplifying installation.
Note: This item is non-returnable.
Key Features:
✔ Capacity: 46 wine bottles + 3.9 cu. ft. refrigerator-freezer storage
✔ Zones: Dual-zone wine cellar + 2-drawer fridge-freezer combo
✔ Cooling System: Frost-free, interior and exterior fan cooling
✔ Temperature Range:
• Wine Upper Zone: 41°F – 50°F
• Wine Lower Zone: 50°F – 64°F
• Refrigerator/Freezer: Standard cooling ranges
✔ Door: Panel-ready glass wine door (panel size: 27 5/8" H x 23" W x 3/4" thick), right-hinged, factory reversible
✔ Cabinet: Stainless steel
✔ Installation: Built-in or freestanding
✔ Shelves: 6 adjustable wire shelves with stainless steel front trim
✔ Refrigerator-Freezer Drawers: Adjustable dividers and chrome basket
✔ Controls: Digital thermostats (wine and refrigerator-freezer sections)
✔ Lighting: Blue LED (wine compartment)
✔ Cord: 6-ft Y-cord with a single 3-prong right-angle plug
✔ Sabbath Mode: Yes (fridge and freezer sections)
✔ Lock: Factory-installed wine cellar lock
✔ Warranty: 1-year parts & labor, 5-year compressor (parts only)
Specifications:
• Dimensions: 65.63" H x 23.63" W x 23.75" D
• Depth with handle: 25.75"
• Depth with door at 90°: 45.75"
• Weight: 221 lbs
A sophisticated and space-saving solution, the SWCDRF24PNR is ideal for luxury kitchens, home bars, and custom-designed spaces that require both high-performance refrigeration and seamless design integration.
